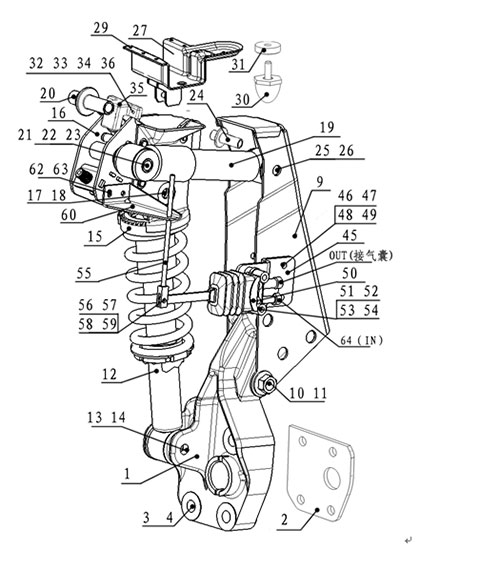

| NO | PART NO | Quantity | Part Name | 名称 |
| 1 | AZ1664430087 | 2 | Plate | 垫板 |
| 2 | AZ1664430041 | 2 | Front susupension transitional bracket | 驾驶室前悬过渡支架 |
| 3 | Q1841470 | 12 | Screw | 六角法兰面螺栓 |
| 4 | Q33014 | 12 | Nut | 全金属六角法兰面自锁螺母 |
| 5 | AZ1664430080 | 2 | Limit bar assembly | 限位拉杆总成 |
| 6 | Q1841035 | 8 | Screw | 六角法兰面螺栓 |
| 7 | Q40110 | 8 | Washer | 平垫圈 |
| 8 | Q33010 | 4 | Nut | 法兰锁止螺母 |
| 9 | AZ1664430021 | 1 | Overturn axis assembly | 翻转轴装配总成 |
| 10 | AZ1664430098 | 2 | Screw | 六角法兰螺栓 |
| 11 | Q340B18 | 2 | Nut | 1型六角螺母 |
| 12 | Q40318 | 2 | Spring washer | 弹簧垫圈 |
| 13 | Q40118 | 2 | Washer | 平垫圈 |
| 14 | WG1664430078 | 2 | Front susupension assembly (air spring) | 驾驶室前减振器总成（空气弹簧） |
| 15 | AZ1664430061 | 2 | Bush | 衬套 |
| 16 | Q18414100 | 2 | Screw | 六角法兰面螺栓 |
| 17 | Q40214 | 2 | Washer | 大垫圈 |
| 18 | Q33014 | 2 | Nut | 全金属六角法兰面自锁螺母 |
| 19 | AZ1664430093 | 2 | Front susupension limit block | 驾驶室前悬上限位块 |
| 20 | AZ1664430083 | 2 | Limit plate assembly | 限位板总成 |
| 21 | AZ1664430051 | 1 | Front susupension bracket (left) | 前悬左下支架 |
| 22 | AZ1664430052 | 1 | Front susupension bracket (right) | 前悬右下支架（与左件对称） |
| 23 | Q151B1645 | 24 | Screw | 六角头螺栓 |
| 24 | 190004000000 | 24 | Nut | 自锁螺母 |
| 25 | AZ1664430094 | 2 | Front susupension limit block assembly | 驾驶室前悬下限位块总成 |
| 26 | Q1841260 | 8 | Screw | 六角法兰面螺栓 |
| 27 | WG1642440051 | 1 | Cortrol valve | 高度控制阀总成 |
| 28 | Q40008 | 2 | Washer | 小垫圈 |
| 29 | Q150B0850 | 2 | Screw | 六角头螺栓 |
| 30 | AZ1664430245 | 1 | Adjust bar assembly | 调整杆总成 |
| 31 | Q5100614 | 1 | Pin | 销轴 |
| 32 | Q5002012 | 1 | Pin opening | 开口销 |
| 34 | AZ1664430065 | 1 | Push-bar board | 推杆连接板总成 |
| 35 | 190003000000 | Tube | 聚酰胺管 | |
| 36 | WG9000361316 | 1 | T-tie in | T型三通接头体3-NW4 |
| 37 | AZ1664430099 | 2 | Washer | 前悬下限位块垫块 |
| 38 |
