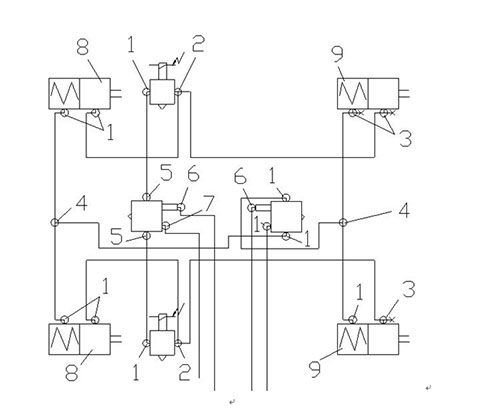

| NO | PART NO | QUANTITY | PART NAME | 名 称 |
| 1 | WG9000361204 | 10 | NG12 / NW9 right Angle connector body | 直角接头体NG12/NW9 |
| 2 | WG9000361305 | 2 | L NG12/2 - NW9 tee joint body | L型三通接头体NG12/2-NW9 |
| 3 | WG9000361406 | 3 | The tee joint body NW9 / NG12 / TEST | T型接头体NW9/NG12/TEST |
| 4 | WG9000361310 | 2 | T 3 - NW9 tee joint body | T型三通接头体3-NW9 |
| 5 | WG9000361101 | 2 | Through joint NG12 / NW9 | 直通接头体NG12/NW9 |
| 6 | WG9000361201 | 2 | Right Angle connector body NG8 / NW6 | 直角接头体NG8/NW6 |
| 7 | WG9000361203 | 1 | NG12 / NW12 right Angle connector body | 直角接头体NG12/NW12 |
| 8 | WG9000360600 | 2 | Diaphragm spring brake chamber L = 270 | 膜片式弹簧制动气室L=270 |
| 9 | WG9000360601 | 2 | Diaphragm spring brake chamber L = 85 | 膜片式弹簧制动气室L=85 |
| 其他管路连接件Other pipe fittings | ||||
| WG9000361004 | 2 | Elastic element NG12 | 弹性元件NG12 | |
| WG9000361005 | 2 | Circlip NG12 | 卡簧NG12 | |
| WG9000361006 | 2 | Nut seat NG12 | 螺母座NG12 | |
| WG9000361007 | 18 | Elastic element NG12 | 弹性元件NG12 | |
| WG9000361008 | 18 | Circlip NG12 | 卡簧NG12 | |
| WG9000361009 | 18 | Nut seat NG12 | 螺母座NG12 | |
