2015-10-26 15:47:33
| NO. | Part No. | Quantity | Part Name | Chinese name |

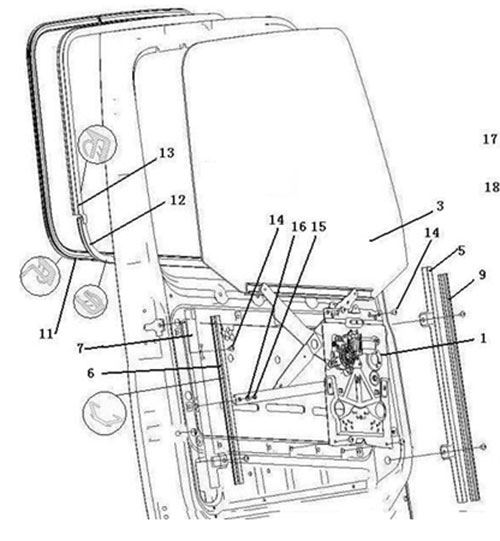

| 1 | WG1664330003 | 1 | Window lifter left | 左玻璃升降器总成 |
| 2 | WG1664330004 | 1 | Window lifter right | 右玻璃升降器总成（与左件对称） |
| 3 | WG1664330015 | 1 | Door glass left | 左车门玻璃(带玻璃托架） |
| 4 | WG1664330016 | 1 | Door glass right | 右车门玻璃（带玻璃托架） |
| 5 | WG1664330009 | 1 | Glass guide left front | 左前玻璃滑槽 |
| 6 | WG1664330018 | 2 | Sealing profileⅡ | 滑槽密封条Ⅱ |
| 7 | WG1664330011 | 1 | Glass guide left rear | 左后玻璃滑槽 |
| 8 | WG1664330010 | 1 | Glass guide right front | 右前玻璃滑槽 |
| 9 | WG1664330017 | 2 | Sealing profileⅠ | 滑槽密封条Ⅰ |
| 10 | WG1664330012 | 1 | Glass guide right rear | 右后玻璃滑槽 |
| 11 | WG1664330019 | 2 | Outer sealing profile | 车门玻璃外密封条 |
| 12 | WG1664330020 | 2 | Inter sealing profileⅠ | 车门玻璃内密封条Ⅰ |
| 13 | WG1664330021 | 2 | Inter sealing profileⅡ | 车门玻璃内密封Ⅱ |
| 14 | Q2140810 | 16 | Screw | 十字槽盘头螺钉 |
| 15 | Q40205 | 2 | Washer | 大垫圈 |
| 16 | Q1840520 | 2 | Screw | 六角法兰面螺栓 |
| 17 | AZ1664930001 | 22 | plastic nut-plate | 塑料螺母座 |
| 18 | AZ1642770017 | 2 | plastic nut | 支承套(扩张筒式螺钉座) |

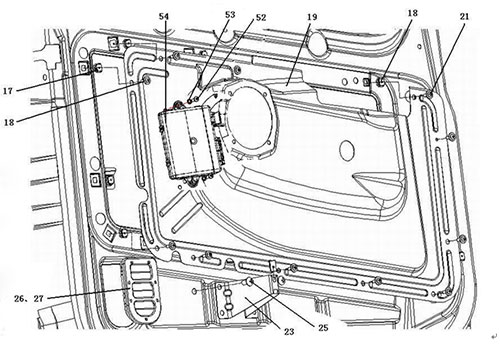

| 19 | WG1664330033 | 1 | cover panel left | 左车门音响安装板总成 |
| 20 | WG1664330034 | 1 | cover panel right | 右车门音响安装板总成 |
| 21 | Q2713516 | 2 | screw | 自攻螺钉 |
| 22 | Q2214816 | 22 | screw | 十字槽盘头自攻螺钉和平垫圈组合件 |
| 23 | AZ1664330019 | 1 | bracket left | 左车门内饰板支架 |
| 24 | AZ1664330020 | 1 | bracket right | 右车门内饰板支架（与左件对称） |
| 25 | Q2140816 | 4 | screw | 十字槽盘头螺钉 |
| 26 | WG1664330023 | 2 | sealing profile | 车门内通风罩密封条 |
| 27 | WG1664330022 | 2 | breather | 车门内通风罩 |

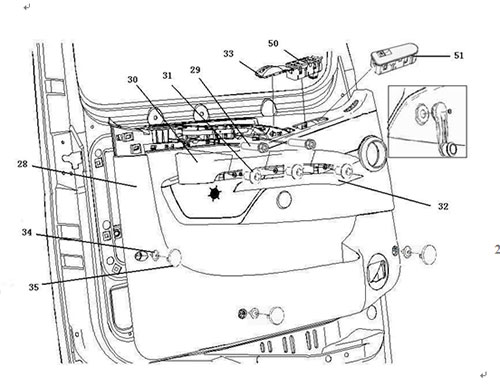

| 28 | WG1664330025 | 1 | Internal lining for left door | 左车门内衬板总成 |
| 29 | Q174B0840 | 2 | screw | 十字槽凹穴六角头螺栓 |
| 30 | WG1664330040 | 1 | Cover left | 扶手外板总成－左车门 |
| 31 | Q2204816 | 3 | screw | 十字槽盘头自攻螺钉和平垫圈组合件 |
| 32 | WG1664330045 | 1 | Cover | 装饰条总成－左车门 |
| 33 | WG1664330051 | 1 | plug left | 内开启手柄盖板－左车门 |
| 34 | Q2214816 | 3 | screw | 十字槽盘头自攻螺钉和平垫圈组合件 |
| 35 | WG1664330097 | 3 | Cover | 螺钉堵盖 |
| 36 | WG1664330026 | 1 |
