STEERING DEVICE

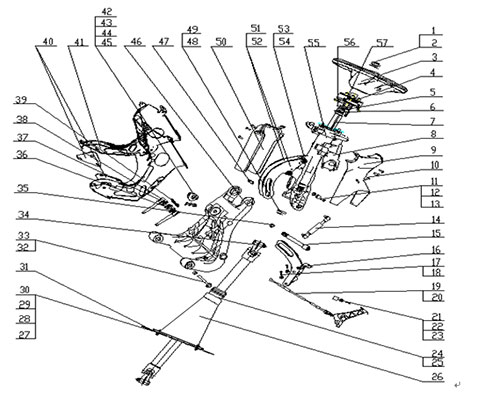

D10 cab part steering device (high floor, bridge section)

2015-04-15 11:46:03



  • prev:

    D10 chassis steering device (10L engine, chassis parts)
  • Contact Us
    • Phone: +86 531 6138 8377

      Fax: +86 531 6138 8177

    • Robert: 008618766172431

    • Email: sales@topleadzzl.com

    • Skype: roberttoplead

    • 5TH BUILDING ZONE2, NO.15 LAN XIANG ROAD, TIAN QIAO DISTRICT, JINAN, CHINA

    Copyright © 2016 TOP LEAD INTERNATIONAL TRADING CO., LTD All Rights Reserved.

     NO. Part No. Quantity Part Name Chinese name
    1 Q351C22T15  1 Hexagon thin nuts 六角薄螺母
    2 Q41822  1 Waveform elastic washer 波形弹性垫圈
    3 WG9925470064 1 Steering wheel 转向盘
    4 WG9925470070 1 The clock spring assembly 时钟弹簧总成
    5 AZ9003320012  1 Deep groove ball bearing 深沟球轴承
    6 AZ9925470099  1 Sealing ring 密封圈
    7 AZ9925470082 1 The steering shaft assembly 转向轴总成
    8 WG9925580103 1 The ignition lock assembly (group does not belong to the book) 点火锁总成(不属于本子组)
    9 WG9925470075 1 Steering column cover (front) 转向柱罩(前)
    10 Q2140512 4 The trough pan head screws 十字槽盘头螺钉
    11 AZ9925470093 2 Plastic bushing 塑料衬套
    12 WG9925470095 2 The tooth type bushing 齿型衬套
    13 Q2580825 2 Allen pattern countersunk head screws 内六角花型沉头螺钉
    14 WG9925470079 1 Gas spring support bolt 气体弹簧支撑栓
    15 AZ9925470140 1 pin 销轴
    16 AZ9925470105 1 Adjust the track assembly (on the mounting bracket) 调整轨道总成(安装支架上)
    17 Q1860816 4 Hex flang bolts 六角法兰面螺栓
    18 Q33008 4 All metal hex flange lock nut 全金属六角法兰面锁紧螺母
    19 WG9925470072 1 Adjust the pedal 调整踏板
    20 WG9925470073 1 Cable assembly 拉索总成
    21 AZ9925470071 1 bushing 衬套
    22 Q1860850 1 Hex flang bolts 六角法兰面螺栓
    23 Q32008 1 Hex flange surface nut 六角法兰面螺母
    24 AZ9100470410 1 bushing 衬套
    25 190003000000 1 Plastic fastening belt 塑料紧固带
    26 WG9925470065 1 Steering axis sheath (high floor) 转向轴护套(高地板)
    27 Q150B0620 4 Hexagon head bolts 六角头螺栓
    28 Q40106 4 Flat washer 平垫圈
    29 Q40306 4 Spring washer 弹簧垫圈
    30 Q340B06 4 Type I hexagonal nut I型六角螺母
    31 AZ9925470066 1 High pressure plate (floor) 压板(高地板)
    32 Q1860855 2 Hex flang bolts 六角法兰面螺栓
    33 Q33008 2 All metal hex flange lock nut 全金属六角法兰面锁紧螺母
    34 AZ9719470043 1 Universal joint 万向节
    35 Q33212T13F2 1 Type 2 full metal hexagonal lock nut 2型全金属六角锁紧螺母
    36 AZ9925470133  1 Install the sleeve 安装套筒
    37 WG9925470131 10 Saucer spring leaf 碟型弹簧片
    38 AZ9925470132 2 Clamp fork 夹紧拨叉
    39 AZ9925470134  1 Lock ring 锁环
    40 AZ9925470118 2 Strengthen the connection stents 加强连接支架
    41 WG9925470100 1 Mounting bracket welding assembly 安装支架焊接总成
    42 AZ9925470135 1 Locking piece 锁紧片
    43 AZ9925470136 1 The gasket 垫圈
    44 AZ9925470137 1 Adjust the gasket 调整垫片
    45 AZ9925470093 1 Plastic bushing 塑料衬套
