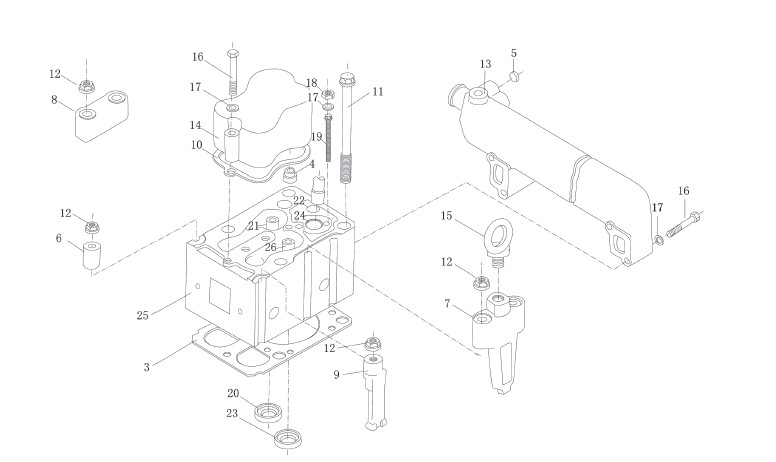

| NO. | Part No. | Chinese Name | Part Name |
| 2 | 61560040040A | 气缸盖分总成 | Cylinder head |
| 612600040167 | 气缸盖分总成 | Cylinder head | |
| 3 | 61500040049 | 气缸盖衬垫 | Gasket |
| 4 | 61500040039 | 气门杆密封套 | Socket ring |
| 612600040114 | 气门杆密封套 | Socket ring | |
| 5 | 6156D040001 | 水堵 | Core plug |
| 6 | 61200040023 | 夹紧块 | Clip |
| 7 | 61500040012 | 吊环夹紧块 | Clip |
| 8 | 61500040009 | 夹紧块 | Clip |
| 9 | 61200040027 | 夹紧块 | Clip |
| 10 | 614040021 | 气缸盖罩衬垫 | Casket |
| 11 | 61500040023 | 气缸盖主螺栓 | Boltt |
| 12 | 61200040034 | 带肩螺母 | Nut |
| 13 | 612600040060 | 出水管 | Pipe |
| 14 | 614040065 | 气缸盖罩 | Cover |
| 15 | 614010388 | 吊环螺钉 | Screw |
| 16 | 90003800466 | 六角头螺栓 | Hexagon bolt |
| 17 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 18 | 90003871252 | 1型六角螺母 | Nut（Ｉ） |
| 19 | 90003813471 | 双头螺柱 | Stud |
| 20 | 61560040057 | 800型进气门座 | Seat ring,inlet |
| 21 | 612600040113 | 气门导管 | Valve guide |
| 22 | 406060010 | 环状密封圈 | Oring |
| 23 | 87560040037 | 800型排气门座 | Seat ring,outlet |
| 24 | 612600040099 | 喷油器衬套 | Nozzle holder |
| 25 | 612600040168 | 气缸盖 | Cylinder head |
| 61560040040B | 气缸盖 | Cylinder head | |
| 26 | 61500040014 | 排气门弹簧下座 | Sping base |
