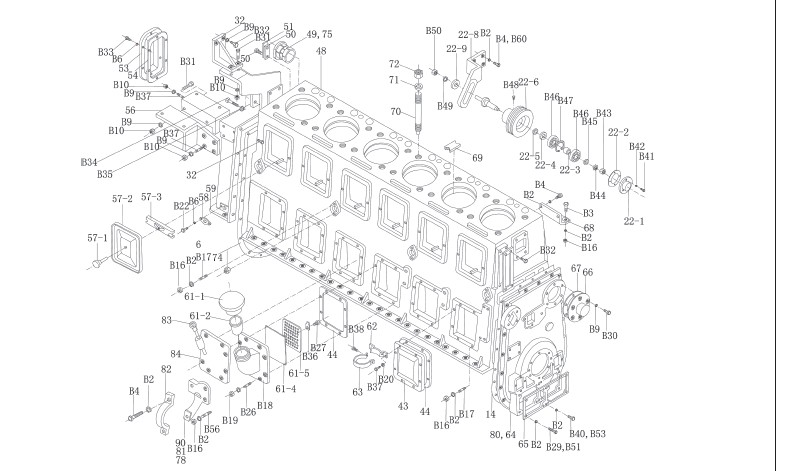

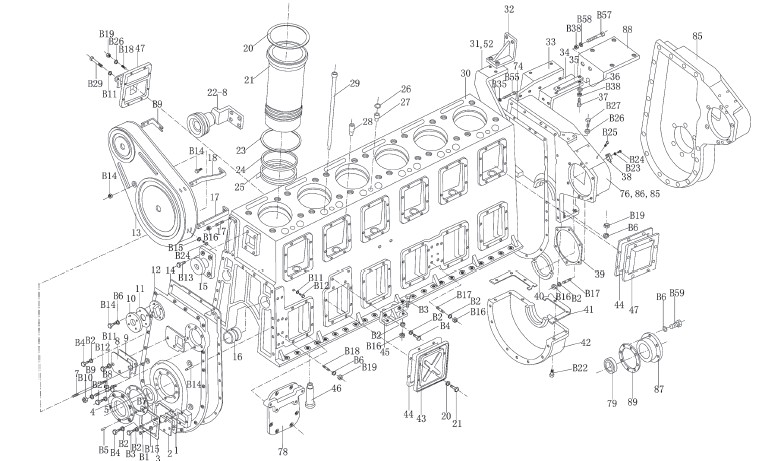

| NO. | Part No. | Chinese Name | Part Name |
| 6160Z.01.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC.01A.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC1.01A.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC2.01A.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC3.01A.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC5.01.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC6.01.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC7.01.00 | 机体结合组 | Cylinder block assembly | |
| 6160ZC8.01.00 | 机体结合组 | Cylinder block assembly | |
| 1 | 160A.01.69A | 垫片 | Gasket |
| 2 | 160A.01.68A | 盖板 | Cover plate |
| 3 | 160A.01.197 | 垫片 | Gasket |
| 4 | 160Z.01.02 | 油封座 | Oil seal seat |
| 160Z.01.02A | 油封座 | Oil seal seat | |
| 160Z.01.02B | 油封座 | Oil seal seat | |
| 5 | 160A.01.153 | 垫圈 | Gasket |
| 6 | 160A.01.254 | 双头螺柱 | Stud |
| 7 | 160A.01.208 | 双头螺柱 | Stud |
| 8 | 160A.01.223 | 盖板 | Cover plate |
| 9 | 160A.01.224 | 离心滤垫片 | Oil contrifugal filter gasket |
| 10 | 160A.01.31 | 圆盖板 | Round cover plate |
| 160Z.01.303 | 盖 | Cover | |
| 11 | 160A.01.32 | 垫片 | Gasket |
| 12 | 160Z.01.228A | 机前盖 | Front engine cover |
| 13 | 160Z.01.231 | 皮带罩 | Belt guard |
| 14 | 160A.01.46 | 垫片 | Gasket |
| 15 | 160A.01.27 | 起重把 | Lifting lug |
| 616000100003 | 海淡水热交换器支架 | Sea-freshwater sxchange device bracket | |
| 160Z.01.293 | 支架 | Bracket | |
| 16 | 160A.01.09 | 凸轮轴轴承 | Camshaft bearing |
| 17 | 160A.01.206 | 支持板 | Support plate |
| 18 | 160A.01.207 | 支持板 | Support plate |
| 19 | 160A.01.205 | 支持板 | Support plate |
| 20 | 616001000001 | 气缸上垫 | Upper cylinder head gasket |
| 616001000002 | 气缸上垫 | Upper cylinder head gasket | |
| 21 | 616001010025 | 气缸套 | Cylinder liner |
| 22 | 160Z.01.70A | 张紧轮结合子组 | Jockey pulley sub-assembly |
| 160ZC1.01.70B | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 160ZC.01.70 | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 160ZC5.01.70 | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 160ZC7.01.70 | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 160Z.01.90A | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 160ZC3.01.90 | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 6160ZC6.01.90 | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 160ZC8.01.90 | 张紧轮结合子组 | Jockey pulley sub-assembly | |
| 22-1 | 160Z.01.70.07 | 端盖 | End cover |
| 22-2 | 160Z.01.70.06 | 垫片 | Gasket |
| 22-3 | 160Z.01.70.08 | 隔圈 | Shield ring |
| 22-4 | 160Z.01.70.05 | 挡油圈 | Oil shield ring |
| 22-5 | 160Z.01.70.04 | 封油圈 | Oil seal ring |
| 22-6 | 160Z.01.70.01 | 张紧轮 | Jockey pulley |
| 61400060161 | 张紧轮总成 | Jockey pulley | |
| 22-7 | 160Z.01.70.03A | 张紧轮轴 | Shaft for jockey pulley |
| 160Z.01.70.14 | 张紧轮轴 | Shaft for jockey pulley | |
| 160Z.01.90.01A | 张紧轮轴 | Shaft for jockey pulley | |
