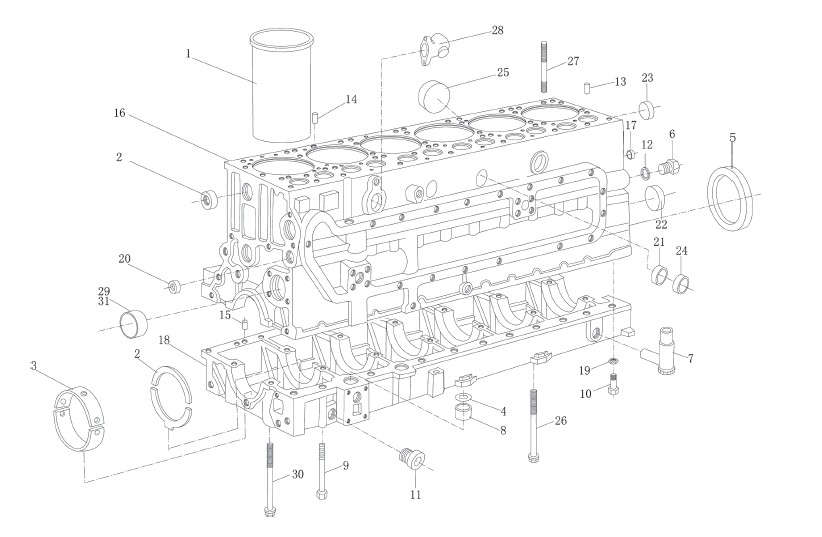

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61500010344 | 气缸套 | Cylinder uner |
| 2 | 81500010125 | 止推片(付) | Thrust plate |
| 3 | 81500010046 | 主轴瓦(付) | Main bearing |
| 4 | 614010134 | 密封圈 | Seal ring |
| 5 | 61500010100 | 后油封 | Rear oil seal |
| 6 | 61460070011 | 主油道后螺塞 | Rear screw plug main oil passage |
| 7 | 612600070070 | 回油弯管 | Return pipe |
| 8 | 614010120 | 套管 | Tube |
| 9 | 90003802493 | 六角头螺栓 | Hexagon bolt |
| 10 | 90003862428 | 圆柱头内六角螺钉 | Screw |
| 11 | 90003962051 | 轻型六角头圆柱螺塞 | Screw plug |
| 12 | 90003098086 | 密封垫圈 | Gasket |
| 13 | 90003901604 | 圆柱销 | Dowel pin |
| 14 | 90003909626 | 弹性圆柱销 | Dowel pin |
| 15 | 90003901604A | 圆柱销 | Dowel pin |
| 16 | 61560010095B | 气缸体 | Cylinder block |
| 17 | 90003984080 | 碗形塞 | Core plug |
| 18 | 61500010366 | 曲轴箱 | Crankcase |
| 19 | 188250083 | 自锁垫圈 | Self-lock washer |
| 20 | 900003989204 | 碗形塞 | Core plug |
| 21 | 90003989289 | 碗形塞 | Core plug |
| 22 | 90003989288 | 碗形塞 | Core plug |
| 23 | 90003982121 | 碗形塞 | Core plug |
| 24 | 90003989215 | 碗形塞 | Core plug |
| 25 | 90003989210 | 碗形塞 | Core plug |
| 26 | 614010217 | 主轴承螺栓 | Main bearing bolt |
| 27 | 61500010185 | 气缸盖螺栓 | Cylinder head nut |
| 28 | 612600010150 | 通风弯管 | Elbow pipe |
| 29 | 61560010029 | 凸轮轴衬套 | Camshaft bushing |
| 30 | 614010114 | 主轴承螺栓 | Main bearing bolt |
| 31 | 612600010990 | 凸轮轴衬套 | Camshaft bushing |
