2015-11-23 22:39:18

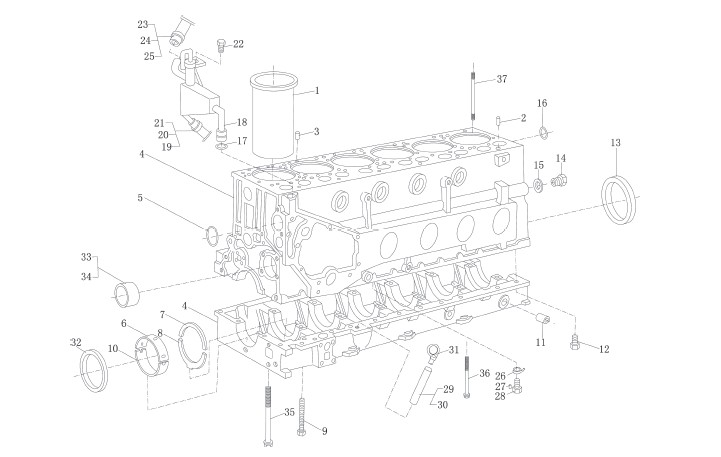

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61800010125 | 气缸套 | Cylinder liner |
| 2 | 90003901604 | 圆柱销 | Pin |
| 3 | 90003909626 | 弹性圆柱销 | Pin |
| 4 | 612600011721 | 气缸体总成 | Cylinder block |
| 5 | 61000010134 | 密封圈 | Seal ring |
| 6 | 61800010128 | 上主轴瓦 | Upper Main bearing half |
| 7 | 61800010127 | 上止推片 | Thrust ring |
| 8 | 61800010130 | 下止推片 | Thrust ring |
| 9 | 90003802493 | 六角头螺栓 | Hexagon bolt |
| 10 | 61800010132 | 下主轴瓦 | Lower Main bearing half |
| 11 | 612600070097 | 回油弯管 | Oil return pipe |
| 12 | 90003862428 | 内六角圆柱头螺钉 | Screw |
| 13 | 90003074487 | 后油封 | Rear oil seal |
| 14 | 61460070011 | 主油道后螺塞 | Screw plug |
| 15 | 90003098086 | 密封垫圈 | Seal ring |
| 16 | 288730062 | 密封圈 | Seal ring |
| 17 | 609F070041 | 密封圈 | Seal ring |
| 18 | 612600010431 | 油气分离器组件 | Oil and gas separator |
| 19 | 609E110049 | 固定板 | Clamp plate |
| 20 | 612600011140 | 橡胶软管 | Rubber hose |
| 21 | 90003989300 | 软管卡箍 | Hose clip |
| 22 | 609E110049 | 六角头螺栓 | Hexagon bolt |
| 23 | 61500010328 | 带纤维夹层的橡胶软管 | Rubber hose |
| 61500010355 | 带纤维夹层的橡胶软管 | Rubber hose | |
| 24 | 90003989301 | 软管卡箍 | Hose clip |
| 25 | 90003171356 | 软管卡箍 | Hose clip |
| 26 | 61560010090 | 喷嘴总成 | Nozzle |
| 27 | 90003909603 | 弹性圆柱销 | Pin |
| 28 | 90003962621 | 空心螺栓 | Hollow screw |
| 29 | 612600010533 | 机油尺管头 | Oil dipstick |
| 30 | 612600010705 | 机油尺管下组件 | Oil dipstick pipe |
| 31 | 612600010628 | 油标尺 | Oil dipstick |
| 32 | 90003074473 | 前油封 | Front oil seal |
| 33 | 61560010029 | 凸轮轴衬套 | Camshaft bushing |
| 34 | 612600010990 | 凸轮轴衬套 | Camshaft bushing |
| 35 | 614010114 | 主轴承螺栓 | Man bearing bolt |
| 36 | 614010217 | 主轴承螺栓 | Man bearing bolt |
| 37 | 61500010215S | 气缸盖螺栓 | Cylinder head bolt |
