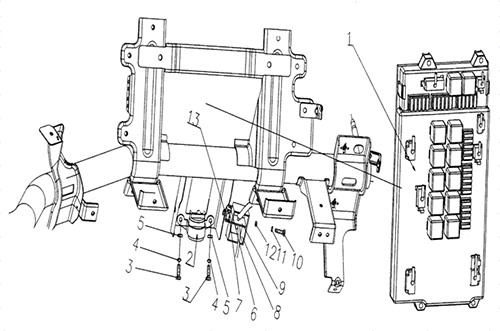

| NO. | Part No. | Part Name | Quantity |
| 1 | WG9719580002 | Control block right | 1 |
| 1/A | WG9719581022 | Control block right | 1 |
| 1/2 | F1-1 | Fuse for seat adjusting | 1 |
| 1/3 | F1-2 | Fuse for start switch | 1 |
| 1/5 | F1-4 | Fuse for cigar lighter left | 1 |
| 1/6 | F1-5 | Fuse for radio and cigar lighter right | 1 |
| 1/10 | F2-4 | Fuse for elctrodrnamic window left | 1 |
| 1/11 | F2-5 | Fuse for elctrodrnamic window right | 1 |
| 1/12 | F3-1 | Fuse for spare relay | 1 |
| 1/13 | F3-2 | Fuse for spare relay | 1 |
| 1/16 | F3-5 | Fuse for 15# electroline | 1 |
| 1/17 | F4-1 | Fuse for steering lights | 1 |
| 1/18 | F4-2 | Fuse for 30#electroline | 1 |
| 1/19 | F4-3 | Fuse for electrothermal seat | 1 |
| 1/20 | F4-4 | Fuse for 15# electroline | 1 |
| 1/21 | F4-5 | Fuse for air dryer | 1 |
| 1/22 | F5-1 | Fuse | 1 |
| 1/23 | F5-2 | Fuse for wiper | 1 |
| 1/24 | F5-3 | Fuse for electroline of air conditioner | 1 |
| 1/25 | F5-4 | Fuse for low beam | 1 |
| 1/26 | F5-5 | Fuse for high beam | 1 |
| 1/27 | F6-1 | Fuse for position light | 1 |
| 1/28 | F6-2 | Fuse for electroline D+ | 1 |
| 1/29 | F6-3 | Fuse for front fog lamp | 1 |
| 1/30 | F6-4 | Spare fuse | 1 |
| 1/31 | F6-5 | Spare fuse | 1 |
| 1-32 | J1 | Relay for steering lamp right | 1 |
| 1-33 | J2 | Relay for air dryer and electrothermal seat | 1 |
| 1-34 | J3 | Relay for air conditioner | 1 |
| 1-35 | J4 | Relay for high beam | 1 |
| 1-36 | J5 | Relay for fog lamp front | 1 |
| 1-37 | J6 | Relay for steering lamp left | 1 |
| 1-38 | J7 | Relay for wiper intermission control | 1 |
| 1-39 | J8 | Relay for low beam | 1 |
| 1-40 | J9 | Relay for position light | 1 |
| 1-41 | J10 | Spare relay | 1 |
| 1-42 | J11 | Spare relay | 1 |
| 1A | WG9719580010 | 3G01 drive soft | 1 |
| 2 | WG9100583049 | Start relay（80A） | 1 |
| 3 | Q150B0516 | Screw | 2 |
| 4 | Q40305 | Spring washer | 2 |
| 5 | Q340B05 | Nut | 2 |
| 6 | Q340B05 | Nut | 2 |
| 7 | Q40405 | Spring washer | 2 |
| 8 | 189100770103 | Line connector(Ⅰ) | 1 |
| 9 | 189100770104 | Line connector(Ⅱ) | 2 |
| 10 | Q150B0518 | Screw | 1 |
| 11 | Q41205 | Toothed washer | 1 |
| 12 | Q340B05 | Nut | 1 |
| 13 | AZ9719770040 | Bracket | 1 |
