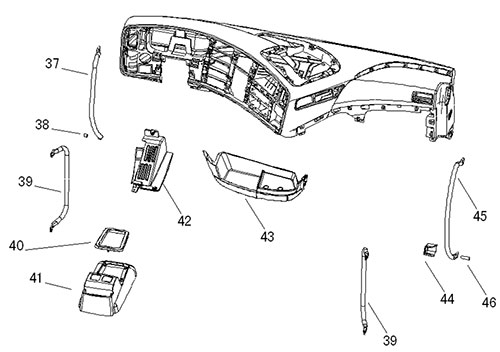

| NO | PART NO | QUANTITY | Designation | 名 称 |
| 37 | WG1664160360 | 1 | left front grab handle | 左前上车扶手 |
| Q150B0825 | 1 | screw | 六角头螺栓 | |
| Q150B0840 | 1 | screw | 六角头螺栓 | |
| Q40108 | 2 | washer | 平垫圈 | |
| Q40308 | 2 | spring washer | 弹簧垫圈 | |
| 38 | WG1664160361 | 1 | sleeve | 左前扶手间隔套筒 |
| 39 | WG1664160380 | 2 | rear handle | 后扶手 |
| Q150B0825 | 2 | screw | 六角头螺栓 | |
| Q40308 | 2 | spring washer | 弹簧垫圈 | |
| Q40108 | 2 | washer | 平垫圈 | |
| 40 | WG1664160351 | 1 | shift cover upper | 换档杆护罩上盖 |
| WG1642160137 | 4 | plastic clip | 塑料卡扣 | |
| 41 | WG1664160350 | 1 | shift cover lower | 换档杆护罩 |
| Q2204816 | 5 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |
| 42 | AZ1664160320 | 1 | foot rest | 踏脚板总成 |
| AZ1664930001 | 2 | plastic nut | 塑料螺母座 | |
| Q2204816 | 3 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |
| 43 | WG1664160150 | 1 | lower box | 下储物盒总成 |
| Q2300620 | 1 | Combination screw | 十字槽盘头螺钉和平垫圈组合件 | |
| 44 | AZ1664160345 | 1 | cover-right a pillar lower panel | 罩盖--A柱右下护板 |
| 45 | WG1664160370 | 1 | right front grab handle | 右前上车扶手 |
| Q150B0825 | 1 | screw | 六角头螺栓 | |
| Q150B0880 | 1 | screw | 六角头螺栓 | |
| Q40108 | 2 | washer | 平垫圈 | |
| Q40308 | 2 | spring washer | 弹簧垫圈 | |
| 46 | WG1664160371 | 1 | sleeve | 右前扶手间隔套筒 |
