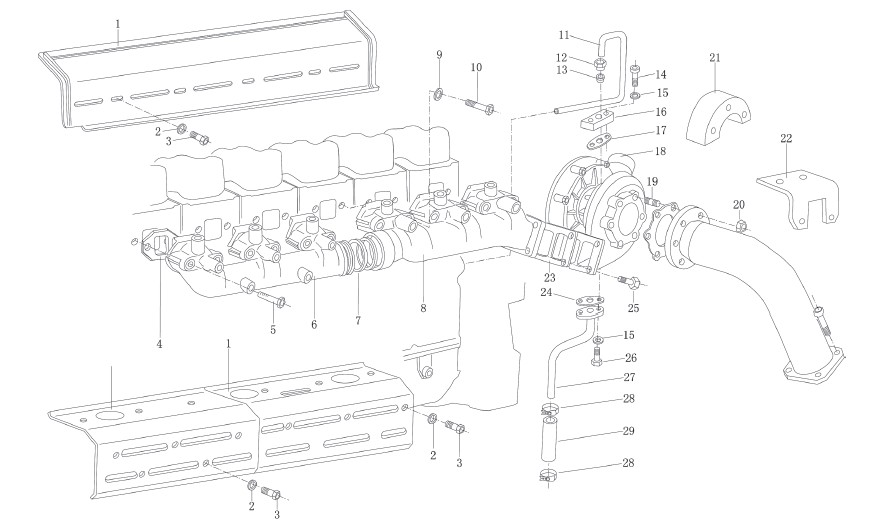

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600110856 | 前隔热罩 | Front heat shield |
| 612600110857 | 后隔热罩 | Rear heat shield | |
| 2 | 90014320002 | 小垫圈 | Washer |
| 3 | 612600110961 | 螺栓 | Bolt |
| 4 | 61560110111 | 排气管垫片 | Exhausf shim |
| 5 | 61560110104 | 排气管紧固螺栓 | Bolt |
| 6 | 612600111290 | 前排气歧管 | Pine |
| 612600110673 | 前排气歧管 | PiDe | |
| 7 | 612600110162 | 排气管密封环 | Seal rang |
| 8 | 612600110855 | 后排气歧管 | Pipe |
| 9 | 609070067 | 止推垫圈 | Thrusl washer |
| 10 | 61560110105 | 排气管紧固螺栓 | Bolt |
| 11 | 61560070001 | 进油管 | Intake pipe |
| 12 | 90003559513 | 管接头螺母 | Nut |
| 13 | 90003559563 | 卡套 | Clip |
| 14 | 90003862428 | 内六角圆柱头螺钉 | bcrew |
| 15 | 188250083 | 自锁垫圈 | Washer |
| 16 | 81560110152 | 进油管法兰 | Flange |
| 17 | 609E110050 | 进油管垫片 | Shim |
| 18 | 61560116227 | 废气涡轮增压器 | Turbocharger |
| 61560118227 | 废气涡轮增压器 | Turbocharger | |
| 61560110227 | 废气涡轮增压器 | Turbocharger | |
| 19 | 81560110187 | 双头螺柱 | Stud |
| 20 | 90003888470 | 2 型全金属六角锁紧螺母 | Nut |
| 21 | 612600110759 | 隔热罩 | Heat shield |
| 22 | 612600110871 | 支架 | Bracket |
| 23 | 61560110210 | 增压器垫片 | Shim |
| 24 | 612600110048 | 回油管法兰垫片 | Shim |
| 25 | 61560110241 | 六角头螺栓 | Bolt |
| 26 | 61460070014 | 回油管螺栓 | Bolt |
| 27 | 612600110361 | 回油管 | Oil pipe |
| 28 | 90003989340 | 软管卡箍 | Clamp |
| 29 | 61260007007l | 增压器回油用软管 | Pipe |
