| NO. | Part No. | Part Name | Quantity |

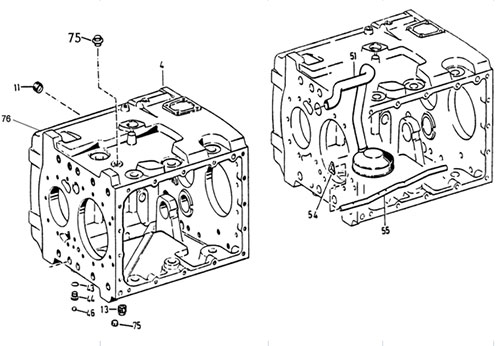

| 0 | 2159003019(B) | Gearbox Assemblage | 1 |
| 0/A | WG9725220022 | Gearbox Assemblage | 1 |
| 11 | 0736301022 | Screw plug | 4 |
| 13 | 0736305016 | Screw plug | 1 |
| 43 | 0634801044 | Seal ring | 2 |
| 44 | 0636302016 | Screw plug | 2 |
| 46 | 0630361103 | Sealing cap | 1 |
| 51 | 501202407 | Suction subassembly | 1 |
| 54 | 0630531387 | Triangular reatiner | 1 |
| 55 | 1269301124 | Spray tube | 1 |
| 75 | 0636301048 | Screw plug | 2 |
| 80 | 2159107502(B) | Bracket C | 1 |
| 81 | 2159207003(B) | Bracket | 1 |
| 82 | 2159307002 | Plate | 1 |
| 83 | 2159307001 | Pin | 1 |
| 84 | 2159307007 | Bracket | 1 |
| 85 | 2159307004 | Pin | 1 |
| 86 | 2159107002(S) | Pneu.assiat.Operating | 1 |
| 87 | 2159307006 | Lever | 1 |
| 88 | 0627207001 | Assist.power cylinder | 1 |
| 89 | 2159207003 | Bracket | 1 |
| 90 | Q150B1225 | Screw | 2 |
| 91 | Q40312 | Washer | 2 |
