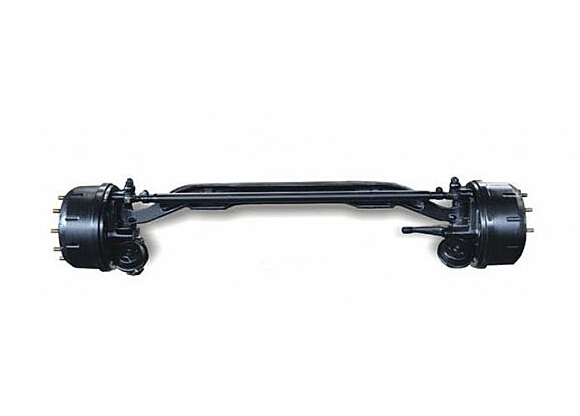

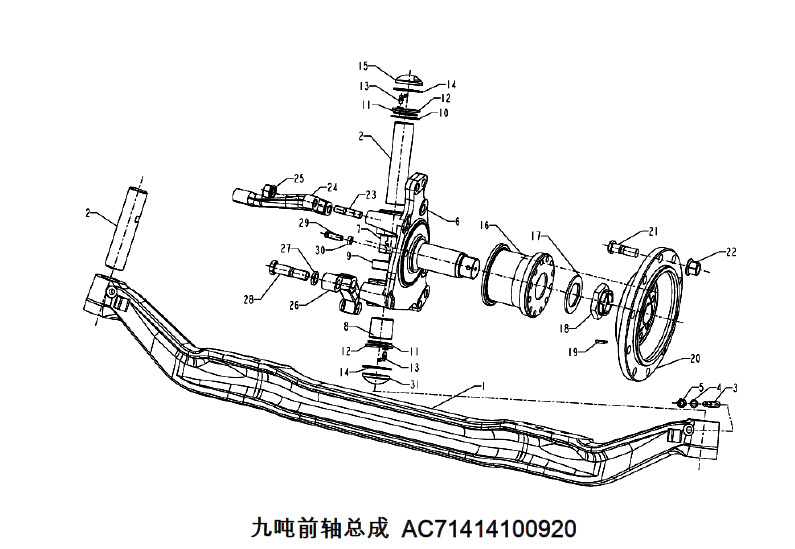

AC71414100920  SINOTRUK® Genuine - HOWO A7 9Ton Front Axle

0	AC71414100920	1		9T front steering axle	9T 前轴总成
1	AZ9925410120	1		Front axle	前轴
2	AZ9925410052	2		Knuckle pin	转向节销
3	AZ9100411005	2		limitative blot	主销限位螺钉
4	Q40314	2		Spring shim	弹簧垫圈
5	Q340B14T13F2	2		Nut	I型六角螺母
6	AZ9925410071	1		Left knuckle	转向节(左)
6a	AZ9925410070	1		Right knuckle	转向节(右)
7	WG9925410050	2		Bushing	衬套
8	WG9925410055	2		Bushing	衬套
9	WG9925410090	2		Bearing	推力滚柱轴承
10	AZ9925410002	nB	S=2.0mm	Shim	垫圈
10	AZ9925410003	nB	S=2.05mm	Shim	垫圈
10	AZ9925410004	nB	S=2.10mm	Shim	垫圈
10	AZ9925410005	nB	S=2.15mm	Shim	垫圈
10	AZ9925410006	nB	S=2.20mm	Shim	垫圈
10	AZ9925410007	nB	S=2.25mm	Shim	垫圈
10	AZ9925410008	nB	S=2.30mm	Shim	垫圈
10	AZ9925410009	nB	S=2.35mm	Shim	垫圈
10	AZ9925410010	nB	S=2.40mm	Shim	垫圈
10	AZ9925410011	nB	S=2.45mm	Shim	垫圈
10	AZ9925410012	nB	S=2.50mm	Shim	垫圈
10	AZ9925410013	nB	S=2.55mm	Shim	垫圈
10	AZ9925410014	nB	S=2.60mm	Shim	垫圈
11	AZ9925410265	4		"O"  ring	O形密封圈
12	AZ9925410075	4		Cap	主销盖
13	Q701B70	4		Grease fitting	弯颈油脂嘴
14	Q43075	4		Spacers	孔用弹性档圈
15	AZ9925410080	4		Dustproof Cap	主销防尘盖
16	WG9925410130	2		Wheel-end bearing range	轮毂轴承单元
17	AZ9925410068	2		Washer	挡圈
18	AZ9925410056	2		Knuckle lock nut	转向节锁紧螺母
19	Q5006380	2		Cotter pin	开口销
20	AZ9925410020	2		Front hub	前轮榖
21	WG9100410212	20		Wheel bolt	车轮螺栓
22	WG9003889160	20		Nut	车轮螺母
23	WG880 410060	2		Stud	双头螺柱
24	AZ9719410001	1		Steering knuckle Arm	转向节臂
25	190003888626	2		Nut fastener	自锁螺母
26	AZ9925410045	1		Tie Rod Arm (left)	转向横拉杆臂（左）
26a	AZ9925410046	1		Tie rod arm(right)	转向横拉杆臂（右）
27	Q40324	4		Spring shim	弹簧垫圈
28	AZ9925410035	4		Cap screw	六角头螺栓
29	1880 410059	2		Adjusting bolt	调整螺钉
30	Q351B14T15	2		Nut	六角薄螺母

HOWO HC16 Axle By SINOTRUK® GENUINE



1. Manufactured from sturdy materials;

2. All parts meet ISO/TS 16949, ISO 14000, and QS 9000 standards;

3. Identical to original equipment, for perfect fit and function;

4. All the parts we sold are same with the original truck parts which means the parts we sold is the best matching parts for trucks. The parts can restore the truck performance 100 percent. The copies can not restore this;

5. Network information platform is used during all the purchasing process. SINOTRUK shares the original parts resource with us which means the purchasing process efficient, exact and orderly.



Our company has perfect quality guarantee system and after-sale service system.
We will handle all manufacturer warranty claims on your behalf. Specific warranty information can be found in the "details" section of each product page. Pictures of the flaw or defect may be necessary to complete your claim.

Warranty period:	Three months
Warranty Conditions:	1.     To ensure that the engine is maintained in accordance with the requirements  during use. 2.     The vehicle is not overloaded. 3.     Other human causes.
The required documents:	Pictures of the flaw or defect
Warranty methods:	1.     To replace a new one; 2.     Provide complete engine repairing parts as compensation; 3.     You keep the product, we compensate in cash.

Packaging Details:	Outside package:	Wooden case
	Inner package:	Carton packaging
Delivery Details:	Within 15 days after payments
